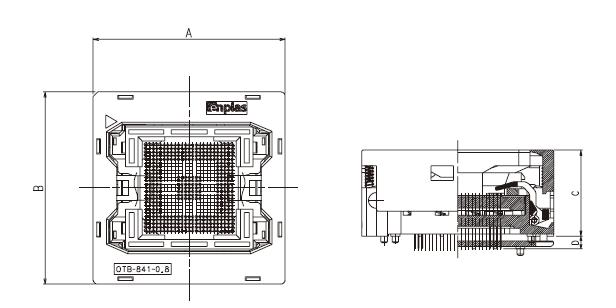

OTB-841-0.8

Product Descriptions

Contact resistance(Initial)：50mΩ (At 10 mA) INITIAL
Maximum voltage：AC700V RMS (for 1 minute)
Insulation resistance：1,000 MΩ or higher (At DC 500V)
Rated current：1A
Operating temperature range：−65℃〜＋150℃
Terminal strength against pulling：0.5Kg (1 min)
Insertion：Min 10,000 times (mechanical)

Body：PEI, PES
Contact：BeCu, Au plating (Ni-base)
